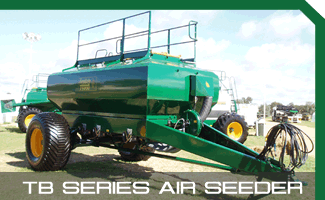

TB Series
| Metering Unit Drive | |||||||
| Model | # of Bins | Standard Ground Drive | Linear Actuator | Proportional Hydraulic Drive | Electric Drive | ||
| 4500 | 2,3 | S | O | O | O | ||
| 6000 | 2,3 | S | O | O | O | ||
| 9000 | 2,3 | S | O | O | O | ||
| 12000 | 2,3 | S | O | O | O | ||
| 15000 | 3 | S | O | O | O | ||
| 17000 | 3 | S | O | O | O | ||
| 20000 | 3 | S | O | O | O | ||
| In Cab Monitor/Controller | |||||||
| Model | # of Bins | E15 Eagle | Topcon X30 | ISO Ready (No Screen Supplied) |
|||
| 4500 | 2,3 | S | O | O | |||
| 6000 | 2,3 | S | O | O | |||
| 9000 | 2,3 | S | O | O | |||
| 12000 | 2,3 | S | O | O | |||
| 15000 | 3 | S | O | O | |||
| 17000 | 3 | S | O | O | |||
| 20000 | 3 | S | O | O | |||
| *ISO Ready Option Not Compatible with Electric Metering Unit Drive | |||||||
| Number of Primary Outlets | |||||||
| Model | # of Bins | 4 | 6 | 8 | |||
| 4500 | 2,3 | S | - | - | |||
| 6000 | 2,3 | - | S | O | |||
| 9000 | 2,3 | - | S | O | |||
| 12000 | 2,3 | - | S | O | |||
| 15000 | 3 | - | S | O | |||
| 17000 | 3 | - | S | O | |||
| 20000 | 3 | - | S | O | |||
| Small Seeds Box ~ Optional | |||||||
| Model | # of Bins | SSB Size (litres) | |||||
| 4500 | 2,3 | 225 | |||||
| 6000 | 2,3 | 300 | |||||
| 9000 | 2,3 | 450 | |||||
| 12000 | 2,3 | 600 | |||||
| 15000 | 3 | 600 | |||||
| 17000 | 3 | 600 | |||||
| 20000 | 3 | 800 | |||||
| Load/Unload Auger ~ Optional | |||||||
| Model | # of Bins | 6" - 152mm | 8" - 204mm | 9" - 229mm | |||
| 4500 | 2,3 | O | - | - | |||
| 6000 | 2,3 | - | O | - | |||
| 9000 | 2,3 | - | O | O | |||
| 12000 | 2,3 | - | O | O | |||
| 15000 | 3 | - | O | O | |||
| 17000 | 3 | - | - | O | |||
| 20000 | 3 | - | - | O | |||
| Wheel Centres | |||||||
| Model | # of Bins | 1.8m | 2m | 3m | 3m Front 3.2m Rear | 4m | Duals |
| 4500 | 2,3 | - | S | - | - | - | - |
| 6000 | 2,3 | - | - | S | - | - | - |
| 9000 | 2,3 | - | - | S | - | - | - |
| 12000 | 2,3 | - | - | O | S | - | O |
| 15000 | 3 | - | - | O | S | - | O |
| 17000 | 3 | - | - | O | S | - | O |
| 20000 | 3 | - | - | - | O | - | S |
| * 3m on 17000 will require an alternate tyre option ** If very specific or exact wheel centres are required, please check prior to order as widths listed are nominal only |
|||||||
| Standard Tyre Size | |||||||
| Model | # of Bins | Front | Rear | ||||
| 4500 | 2,3 | - | 18.4 x 26 | ||||
| 6000 | 2,3 | - | 18.4 x 26 | ||||
| 9000 | 2,3 | - | 23.1 x 26 | ||||
| 12000 | 2,3 | - | 24.5 x 32 | ||||
| 15000 | 3 | - | 750/60 x 30.5 Radial |
||||
| 17000 | 3 | - | 750/60 x 30.5 Radial |
||||
| 20000 | 3 | - | Dual 600/70R34 |
||||
S (Standard) O (Optional) - (Not Available) *Specifications are subject to change without notice

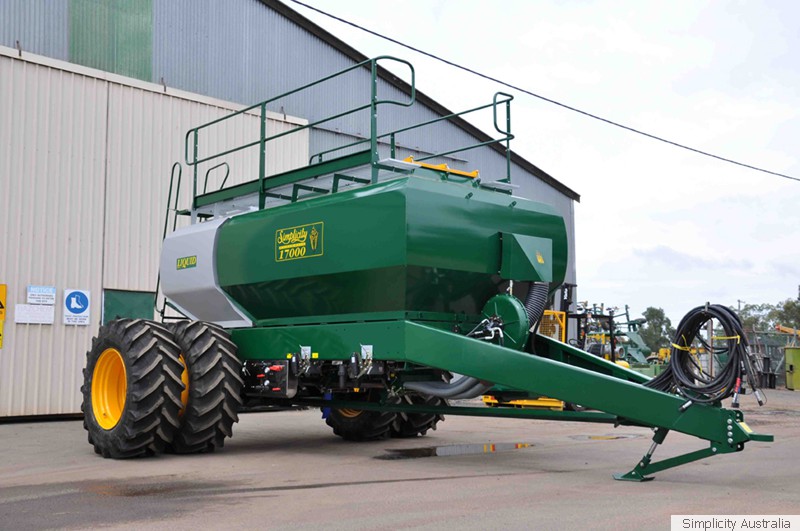

Simplicity ‘Tow Between’ (TB) seeders are engineered for lasting strength and durability.
The TB range is offered in 5 sizes from 4500 litres up to 20,000 litres. TB seeders are constructed using a folded 8mm chassis with oversized gussets and also feature heavy duty axles to handle the added stresses involved in towing a cultivator.
The entire range features full surveillance monitoring, heavy duty blower motor and a front mounted hydraulic jack all fitted as factory standard.
